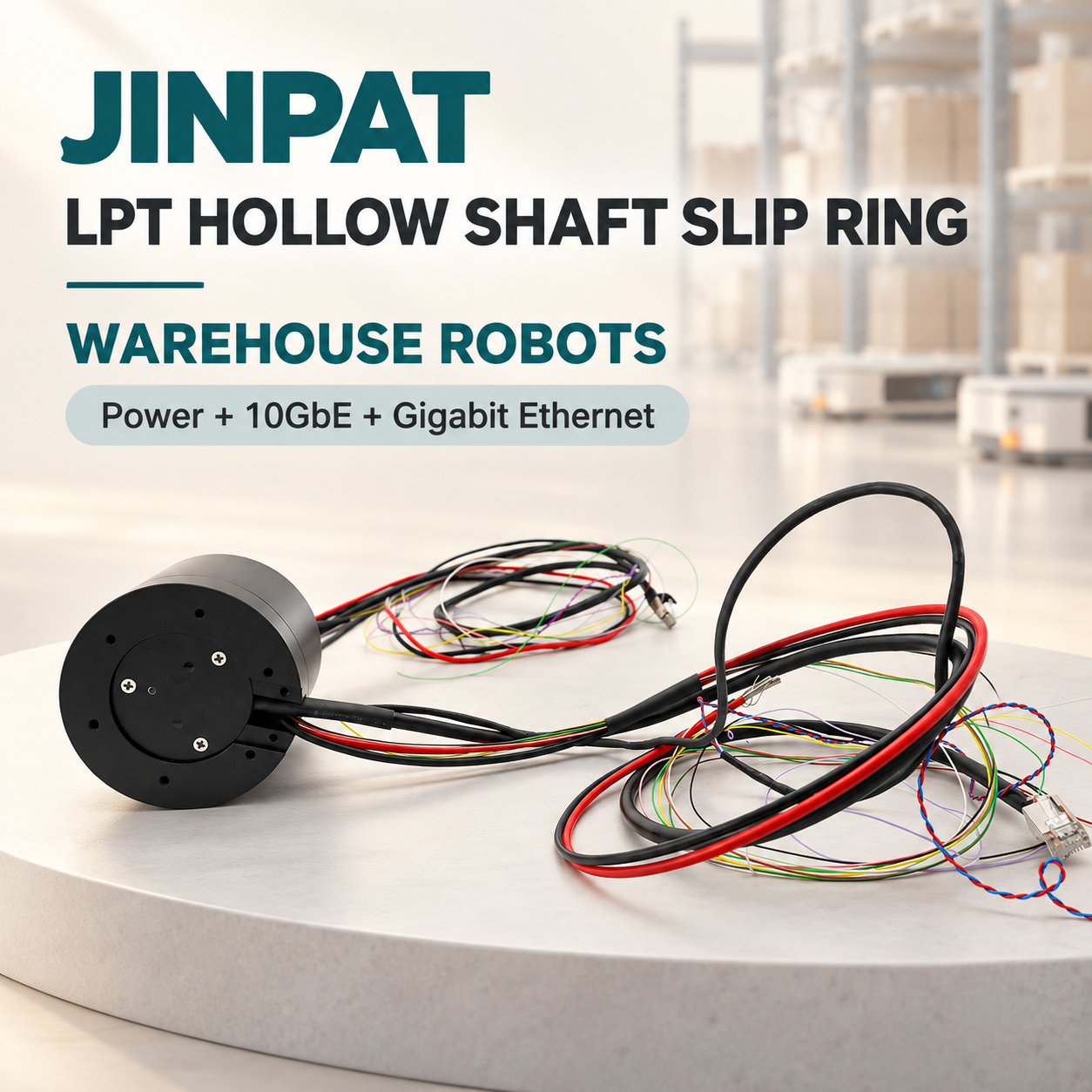

JINPAT LPT Hollow Shaft Slip Ring Features for Warehouse Robots

Warehouse robots often need to transfer more than power through a rotating joint. They may require high-speed communication for vision systems, industrial networks, sensors, control units, and equipment monitoring. JINPAT LPT hollow shaft slip rings are built to support these integrated requirements.

Integrated power transmission

The slip ring transfers electrical power to rotating actuators, control modules, sensors, and other functional components, helping the robot maintain continuous operation during rotation.

10 Gigabit Ethernet transmission

10GbE channels are suitable for high-bandwidth applications such as machine vision, high-resolution image transfer, and large-volume data exchange in intelligent warehouse systems.

Gigabit Ethernet transmission

Gigabit Ethernet channels can support robot control networks, industrial communication, equipment status monitoring, and connections to higher-level systems.

Cap-style integrated hollow shaft design

The product can be installed around a rotating shaft. Its central bore provides room for a mechanical shaft, wiring, or other internal components, supporting more compact equipment layouts.

Up to 60 million revolutions

Designed for high-frequency operation, the LPT series provides long service life for warehouse robots, sorting equipment, automated guided vehicles, and other logistics automation systems.

JINPAT can customize the electrical circuits, Ethernet channels, dimensions, bore size, connectors, and installation method according to your warehouse robot design.
