JINPAT High Frequency Slip Ring Application Terminal

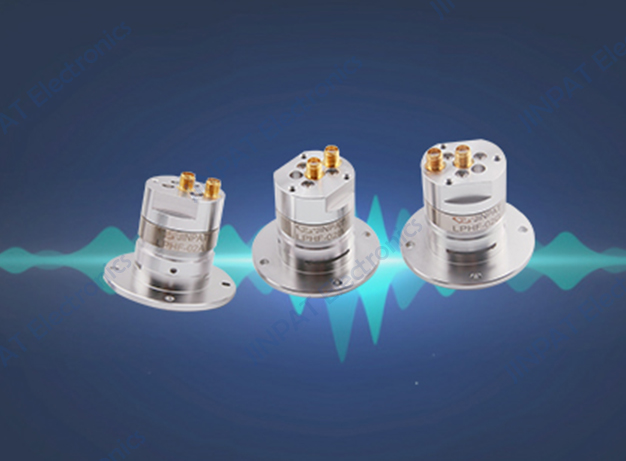

The high frequency slip ring products of JINPAT are divided into two series. The LPCC series with a single channel has a smaller diameter and is usually integrated with capsule slip rings with small apertures. When using a 75Ω coaxial cable, this series of slip rings can be used to transmit SDI high-definition video signals, and currently, the highest supported signal is 12G-SDI. When its cable is replaced with a 50Ω coaxial cable, this series of high frequency slip rings can also transmit radio frequency (RF) signals. However, due to its small size, it can only support RF signals with a maximum peak power of 3KW. The other series of high frequency slip rings, LPHF, has higher capacity and can support RF signal transmission with a maximum peak power of 30KW.

LPCC series high frequency slip ring products can be integrated with 75Ω cables to become slip rings for SDI high-definition video signal transmission. These products usually use capsule slip rings or small through-hole slip rings, except for the LPC-1C series standard high frequency integrated slip rings developed from the LPC-T series products. As long as the LPCC high frequency slip rings integrated with 75Ω cables are used, whether they are hollow shafts or capsule, they can be customized for equipment that requires video signal transmission. These devices include large stabilizing platforms for auxiliary high-definition cameras and spherical, rotatable high-definition video surveillance cameras on the streets,as well as electro-optical turrets and machine vision equipment installed on some weapon systems.

The LPHF series of high frequency slip rings have a wider range of applications. The most typical applications include radar with rotating panels and some special medical devices. The high frequency slip rings used in medical equipment have fixed bands, while the high frequency integrated slip rings used in radar need to be equipped with slip rings that support the corresponding wavelengths.

JINPAT updates the integrated LPCC and LPHF high frequency slip ring products every year to meet the needs of most mainstream application terminals for high-definition video and RF signal transmission. All high frequency slip ring products are independently developed and produced by JINPAT. This makes JINPAT high frequency integrated slip rings not only have a fast delivery speed but also ensures quality.
