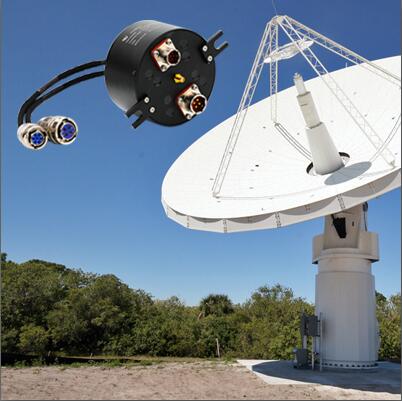

JINPAT High Frequency Rotary Joints for Military Radar System

Rotary joints, also called slip rings, are important electrical components that facilitate power and signal transmission between the rotating part and stationary part. There are various types of slip rings to serve in specific applications. As for military radars, which are widely used in detecting the orientation of an object in the military defense system, aside from allowing the radar antenna to rotate in a 360-degree, the rotary joint or slip ring needs to enable a reliable data transmission. JINPAT high frequency rotary joint, or radio frequency slip ring is a perfect slip ring solution for military radar systems.

JINPAT high frequency slip ring, transmits analog signals from 500MHz to 50GHz. Radio frequency slip rings can be further categorized into single-channel RF rotary joints and multi-channel rotary joints.

RF slip rings developed by JINPAT contribute to simplifying the structure of a military radar system, rid it of leads twinning and therefore attain a smooth 360-degree rotation of the antenna while maintaining an excellent data transmission performance.

Features & Advantages

◆ High transmitting frequency

◆ Anti-electromagnetic interference

◆ Hybrid precise rotary joints

◆ Reliable performance, without data package loss

◆ Ultra-low attenuation loss, low electrical noise

◆ Small and light with compact design

◆   Water-proof, pressure-proof, and vibration resistant

◆ Operating in a wide range of temperature

◆ Long service life

◆ Maintenance free

◆ Cost-effective

◆ Rapid delivery
