Introduction to the latest technology of JINPAT high-power integrated collector ring conductive slip

Offshore Equipment2024-10-31

High power collector ring, also known as integrated slip ring or collector ring. Mainly used in large equipment, slip ring box refers to a square shaped slip ring with high power transmission capability. These products mostly use carbon brush friction pairs, so they are often referred to as collector rings by some manufacturers.


As an explorer in the slip ring industry, JINPAT also has strong technical strength in the field of carbon brush slip rings. For high-power collector rings, products with higher voltage and higher single current have relatively higher manufacturing difficulty. Unlike many collector rings on the market that are directly cast with electric wood, high-power collector rings from JINPAT often adopt an empty frame structure. When transmitting power, the carbon brush comes into contact with the copper ring, generating a large amount of heat. In order to ensure good heat dissipation, we will make the collector ring an overhead structure, similar to the frame structure of a tower. When this type of collector ring needs to transmit signals, fiber optic slip rings are added to enable the collector ring to transmit both current and power while also transmitting data.

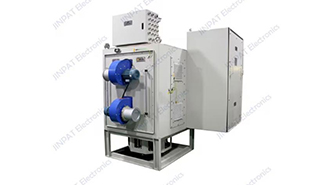

At present, JINPAT has successfully delivered high-power collector rings, including a super giant with a single current of 4000A, a total product volume of nearly 10m ³, and a packaging volume of over 13m ³, as well as high-power through hole collector rings with a single current of only 1000VAC but a transmission power of 1MW. JINPAT' two high-power collector rings are both developed for fully electric rotary thrusters. The former has been in use for many years, while the latter 1 megawatt product has recently passed various navigation tests such as DP and FEMA.


As a professional slip ring manufacturer, the collector ring developed by JINPAT can not only support ultra-high power transmission, but also integrate various modules, such as gas-liquid slip ring modules, fiber optic slip ring modules, and weak current modules. JINPAT LPA000-034000-01PE-0606-72S-11L-01A is a very typical high-power and weak electric gas filling liquid module integrated collector ring product, and optoelectronic integrated products are represented by LPA000-0250-01PE-FO04 and LPA000-1484-04FO-EX. In addition to these two representative products, JINPAT also has a variety of multi module integrated collector rings applied in different fields. These products have one or more functions in terms of vibration resistance, high protection level, and high explosion-proof level.


If you have any customization needs for slip rings, please feel free to consult us. JINPAT is dedicated to serving you.
