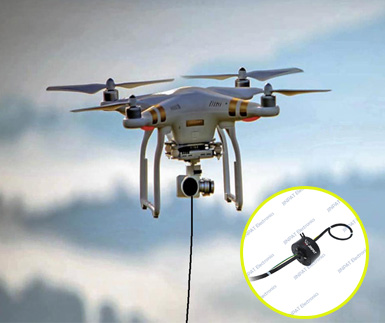

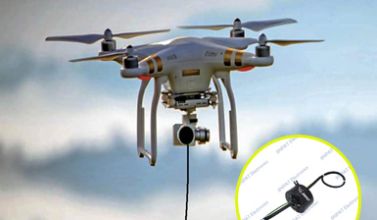

The Application of JINPAT Slip Rings in Tethered UAVs

I. The "Lifeline" Challenge for Tethered UAVs

Tethered Unmanned Aerial Vehicles (UAVs) are able to achieve 24-hour continuous aerial loitering thanks entirely to the "lifeline" connecting them to the ground. However, the longer the cable, the more pronounced the voltage drop caused by electrical resistance becomes. To ensure that onboard motors receive sufficient power, the industry consensus is to employ High-Voltage Direct Current (HVDC) transmission. This imposes rigorous demands on the slip rings located at the rotational interface: they must not only withstand high voltages to prevent dielectric breakdown but also be sufficiently lightweight to conserve lift capacity.

II. The JINPAT LPC-H Series: The Art of Balancing High Voltage and Compactness

Addressing this specific niche market, JINPAT has structurally reimagined the hollow-shaft slip ring:

High-Voltage Safety Barrier: The interior features specialized insulating materials and an optimized creepage distance design. Even in the thin-air environments of high altitudes, this effectively prevents high-voltage arcing and electromagnetic interference, ensuring the integrity and purity of power transmission.

Physical Advantages of the Hollow Shaft: The central aperture serves a dual purpose: it not only reduces weight but also offers flexibility for system integration. It can serve as a conduit for coolant circulation lines or as a precision axis for mounting multispectral cameras, thereby achieving "multi-functionality in a single component."

Weather Resistance and Reliability: Recognizing that UAVs frequently operate under harsh conditions—such as wind, rain, and salt spray—we have upgraded the sealing rating of the housing. This ensures that, even amidst complex meteorological conditions, the dynamic contact resistance of the slip ring remains subject to minimal fluctuation.

III. The Practical Significance of Enhancing Mission Payload Capacity

By utilizing JINPAT compact, high-voltage slip rings, UAV manufacturers can reallocate the lift capacity—which would otherwise be consumed by the weight of the slip ring itself—toward carrying more advanced radar systems or communication base stations. This represents not merely a component replacement, but a comprehensive elevation of the entire system's operational efficiency.
