JINPAT Electro-optical Slip Rings for UAVs

JINPAT Electronics is a historical slip ring manufacturer in China. Since establishment, JINPAT Electronics has great efforts in doing R&D research and production on slip rings, rotary joints and rotary unions. There are many standard slip ring models by JINPAT. As for UAVs and drones, JINPAT recommend our electro-optical slip ring models.

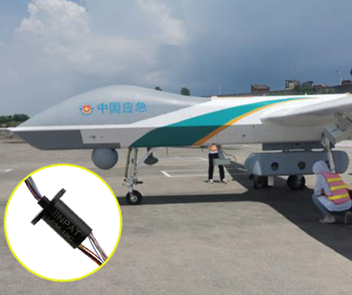

LPC-3402-46S-HD01 is a slip ring model developed for UAV electro-optical reconnaissance system. LPC-3402-46S-HD01 slip ring supports multi-channel transmission of sensor signals and video signals. This UAV electro-optical pod slip ring integrates many channels within a compact structure. It is a key player in the electro-optical reconnaissance system. LPC-3402-46S-HD01 embraces excellent and stable properties.

Technical breakthroughs of LPC-3402-46S-HD01:

1.Realize image motion compensation, smoothing of the sliced images seams, improving the display effect of the sliced images and real-time splicing wide-area image during 360-degree rotation.

2.Supports power to the servo motor while conducting constant transmission and processing of various signals: Ethernet, HD-SDI and Cameralink, etc.

3.With the trend of light-weight small size UAV, JINPAT enhances the processing and assembling techniques of the slip ring to fit in the limited installation space.

4.Enhanced performance in low-temperature endurance, shock and impact endurance to cope with the working environment of UAVs.

JINPAT UAV electro-optical slip rings adopt light-weight metal, precious metal plating and gold-to-gold contact. With the enhanced techniques, LPC-3402-46S-HD01 excels in providing a constant and reliable rotary transmission.
