JINPAT LPPL Series: Integrated Pneumatic-Liquid Slip Rings for Next-Generation Security Monitoring

Modern security monitoring systems—such as rotating PTZ cameras, radar towers, and perimeter monitoring platforms—require more than simple power transmission. They need to simultaneously transmit high-speed data, control signals, and cooling media while ensuring continuous equipment rotation to prevent signal loss or mechanical failure.

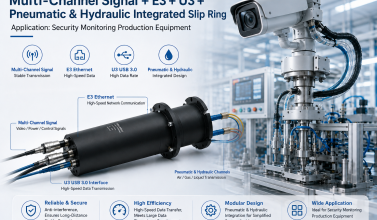

The JINPAT LPPL series of integrated pneumatic-hydraulic slip rings addresses this challenge by integrating electrical signal channels, gas channels, and liquid media transmission into a single compact rotary joint. This integration eliminates the need for separate rotary interfaces, reducing installation complexity and potential points of failure in outdoor or harsh environment deployments.

The key to the LPPL design lies in its multi-channel signal transmission capability, supporting simultaneous transmission of power, control, and communication lines without crosstalk or interference. For surveillance applications requiring high-bandwidth video and data transmission, the integrated E3 (Ethernet) module provides a stable network connection via the rotary interface, ensuring uninterrupted real-time video streaming even during continuous 360° rotation.

The newly added U3 (USB 3.0) channel further expands functionality, allowing high-speed peripherals (such as external storage devices or auxiliary sensors) to pass through the rotary interface without reducing transmission speed.

For systems requiring liquid cooling (common in high-power surveillance radar or thermal imaging equipment) or pneumatic control (such as lens cleaning or housing pressurization), the LPPL pneumatic-liquid channels provide leak-proof, low-friction rotary actuation and can withstand continuous operating cycles.

The LPPL series features an integrated design, making it particularly suitable for smart city surveillance towers, port and airport perimeter surveillance, and mobile security robots—environments where reliability, compactness, and multimedia integration are uncompromising.
