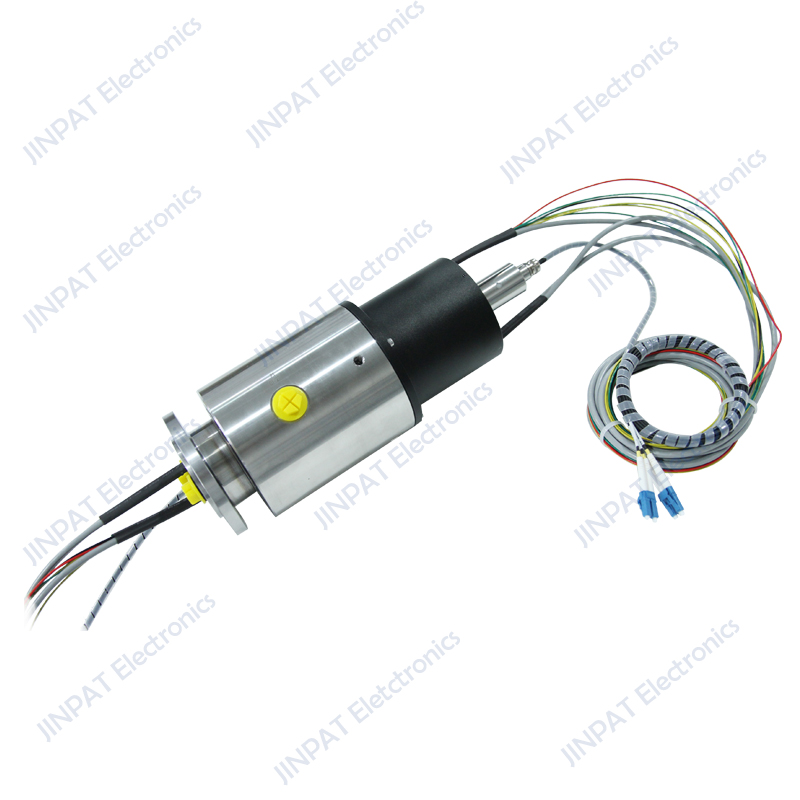

The JINPAT Through Bore Series Integrated Slip Ring integrated with gas-liquid
electric has three structures to choose from.
The first type is that the gas-liquid module uses one main shaft each,
and the two are connected by bolts, which is also the most common type of all
gas-liquid electric integratedslip rings.
The second type is that the gas-liquid module and the electric slip ring module
share one main shaft, which is suitable for gas-liquid integrated slip rings
with fewer gas-liquid module channels.
The third type is a double-layer structure slip ring, The gas-liquid module
is located at the center or outsideof the slip ring, which has high flexibility.
When the gas-liquid module is in the outer layer, the number ofgas-liquid module
channels supports multiple choices.
LPPL000-02L-0610-0605-F004.pdf
