Application of JINPAT Conductive Slip Ring in TV Broadcasting Vehicle

For TV broadcasting programs, live broadcasting is a relatively common form of expression. When live broadcasting is carried out outdoors, it needs to support more equipment. In this case, many of them are carried out by outdoor TV broadcast vehicles. supported. In most outdoor OB vehicles, a conductive slip ring is indispensable. As a professional manufacturer in the field of conductive slip rings, JINPAT Electronics will show you the application of conductive slip rings on broadcast and TV OB vehicles.

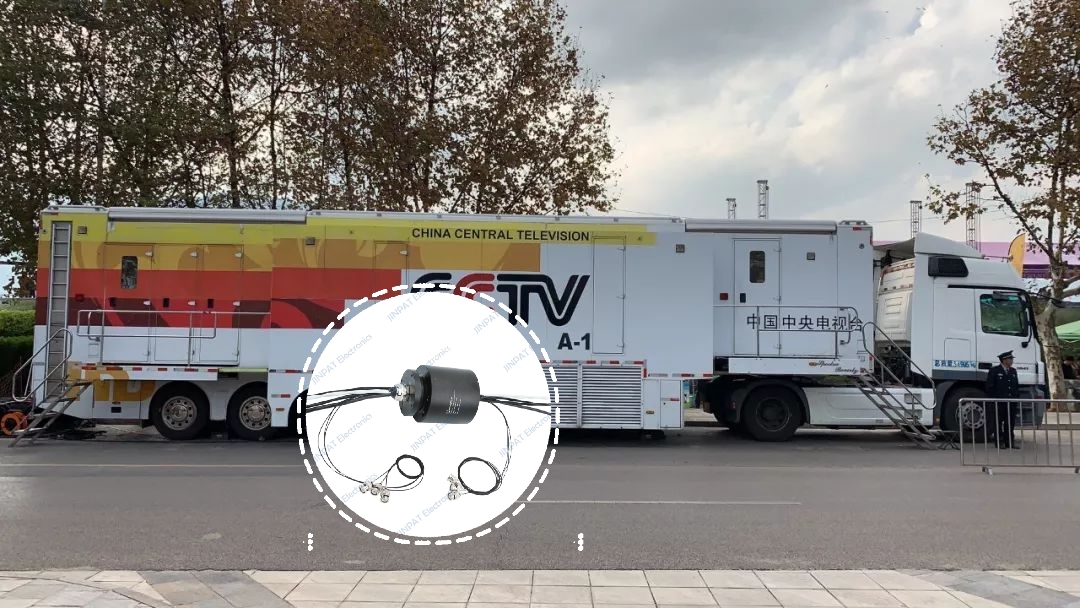

This time we are introducing the model LPT000-0410-0205-03SD1-01E4. The biggest feature of this conductive slip ring is that it integrates 3 channels of SDI video signal channels and 1 channel of Gigabit network signal channels. JINPAT’s leading position in this field Technical ability, already has the ability to support 4K@60FPS or 12G-SDI high-definition video signals, thanks to the LPCC series high-frequency slip rings independently developed by JINPAT Electronics, this series of conductive slip rings can not only support the transmission of 4K video signals , after replacing the 50Ω coaxial cable, it can also be integrated in the radar junction ring. In addition, in order to adapt to the vehicle environment, this type of product also adopts an anti-vehicle vibration structure design, and the vehicle-mounted conductive slip ring is limited by the voltage of the platform power supply, so the power transmission capability is not strong. The power module of this conductive slip ring of JINPAT Twisted-pair shielded wires are used, which allows the module to transmit power and also serve as a backup transmission module for some special signals.

In addition, LPT000-0410-0205-03SD1-01E4 is the latest model customized by JINPAT for TV broadcast vehicles for overseas users. This type of conductive slip ring has a high design protection level, and can reach IP68 in the case of horizontal installation. Level of protection, which makes it have a very strong ability to adapt to outdoor working environments
