Outer Diameter of Just 145mm! — The Application of JINPAT High-Current Slip Rings in Winch Systems

As industrial winches evolve toward lighter and more modular designs, the challenge of simultaneously transmitting high-power electricity and high-speed signals within a limited structural space has become a major hurdle for every mechanical engineer. Today, through a case study of the LPA series, we present an integrated solution specifically tailored for "compact spaces."

Engineering Design Bottlenecks: The Balancing Act of Space Utilization

Structural Conflicts: Transmitting high-voltage, high-power electricity typically necessitates bulky housings; however, the available installation space on winch bases is becoming increasingly restricted, forcing designers to make critical trade-offs between "power capacity" and "physical dimensions."

Cabling Challenges: Traditional distributed transmission methods require laying multiple independent cables. This not only increases installation complexity but also introduces a high risk of mechanical entanglement during high-speed rotation—a hazard that could potentially lead to safety incidents.

Technical Reconstruction: A Modular Integrated Solution

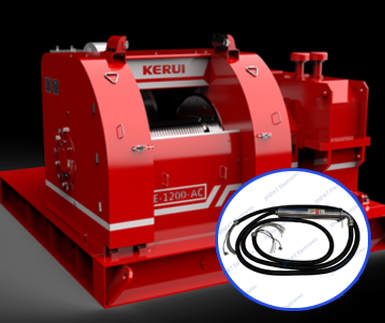

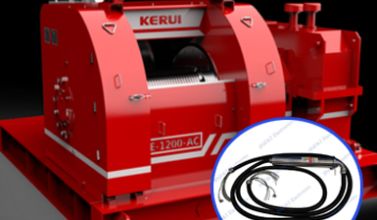

High-Density Packaging: Leveraging precision modular packaging technology, the system successfully integrates eight 100A current channels, two 60A current channels, and four 5A control loops into a single cylindrical housing—measuring just 145mm in diameter and 900mm in length.

Multifunctional Convergence: Through a single interface, the system achieves the simultaneous transmission of drive power, RS485 data communications, and single-mode fiber optic signals—thereby completely shattering the traditional notion that "greater functionality inevitably means greater physical size."

The Core Advantages of Integration

Space Optimization: Significantly reduces the footprint required for base installation, thereby enabling a lighter and more compact overall design for the winch system. **Logical Simplification:** The single rotary interface not only streamlines the cabling process but also—at the system level—eliminates electromagnetic interference caused by cable entanglement, thereby significantly enhancing overall operational stability.

The JINPAT LPA is more than just a slip ring; it serves as the core engine for space optimization within your winch design, leveraging exceptional structural efficiency to elevate the compactness of your equipment to entirely new heights.
