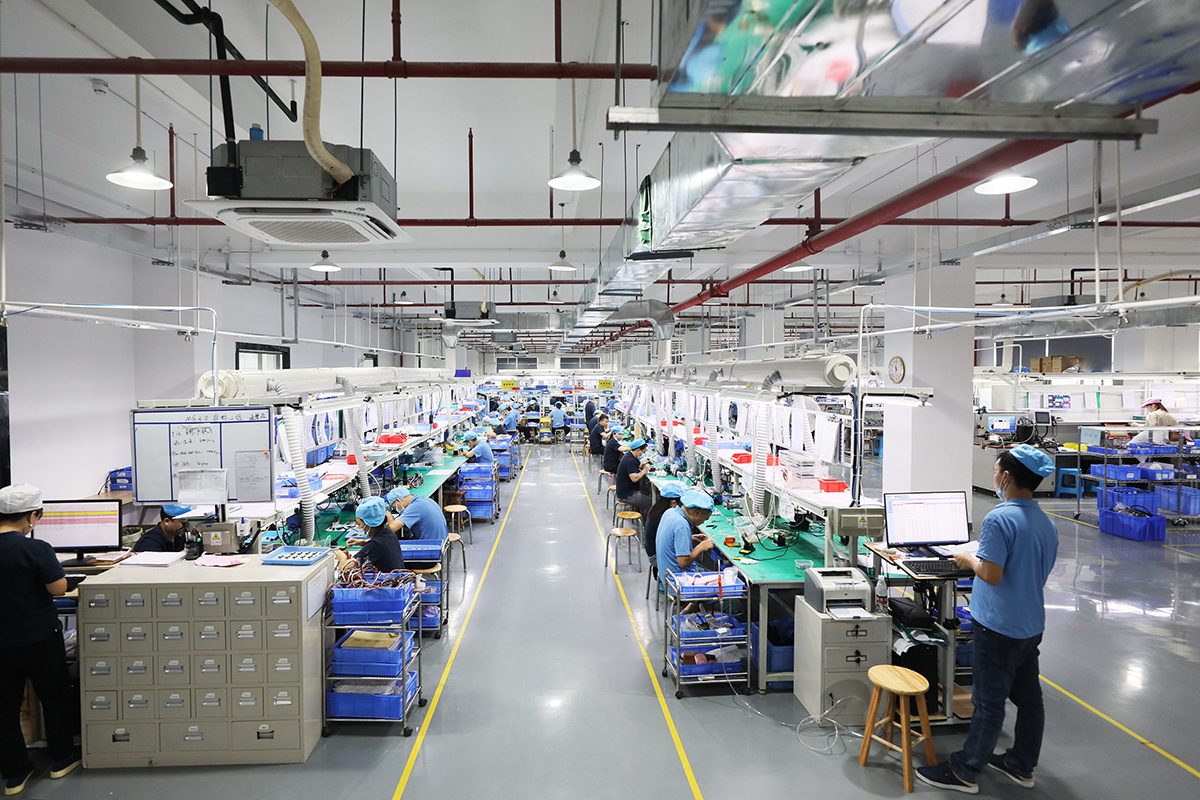

JINPAT Electronics is the first manufacturer specializing in slip ring manufacturing in the Pearl River Delta region, and also the earliest registered Chinese private slip ring manufacturer. After more than 20 years of development, JINPAT has grown into a well-known slip ring manufacturer all over the world ring maker. The slip ring industry is a very characteristic industry, and the customization rate of products in the industry is very high. At present, among the tens of thousands of models of slip rings under JEPAT, more than 90% of the products are customized products.

Next, we will introduce you to the slip rings developed by JINPAT for optical equipment. In China, the most common optical device that requires the use of slip rings is often the most easily overlooked device in people's lives, that is, the spherical surveillance cameras that can be seen everywhere on the street. In the spherical surveillance camera, the video signal of the camera will be converted into an Ethernet signal for transmission, so the customized cap slip ring product is generally used, and the twisted pair combination is used to transmit the Ethernet signal.

In addition, the SDI signal is a necessary path for most optical equipment, such as photoelectric turrets, which are equipped with situational awareness equipment on weapons and equipment, and the slip rings used are also the most classic SDI signal integrated slip rings. According to the degree of integrated functions of the turret and the different operating distances, the slip rings matched by this type of equipment are also different. The photoelectric turret slip ring developed by JINPAT Electronics has nearly 100 channels. This is also the product with the largest number of channels among all JINPAT photoelectric equipment slip rings. In addition to SDI signals, it also integrates infrared signals, angle signals, Various signals such as control signals.

The slip ring used in this kind of photoelectric turret is the giant of JINPAT slip rings, and the smallest slip ring developed by JINPAT for photoelectric equipment is from LPMS-05D, which is 5.5mm in diameter and 9.6mm in length. It is improved on the standard product, and its 1 SDI signal path occupies the original 3 SDI signal paths of the standard product, and the remaining 2 current paths are retained. Whether it is a high-end photoelectric turret or a small precision optical device for civilian use, JINPAT Electronics can provide corresponding SDI high-definition video rotation solutions. The slip ring of JINPAT high-definition optical equipment can meet 4k@60FPS and below SDI high-definition Rotational transmission requirements for video signals.
