Innovations in Multi-Signal Integrated Slip Ring Technology

JINPAT’s integrated signal series slip rings offer exceptional technical advantages, supporting up to six channels of 3G-SDI signal transmission to meet diverse signal requirements. With a wide operating voltage range from 0 to 48VAC, these slip rings are adaptable to various applications. They also feature a high-speed rotation capability of up to 300rpm, ensuring stable performance in dynamic environments. Operating temperatures range from -40°C to +70°C, making them suitable for harsh conditions, and they can function in environments with up to 95% relative humidity. Additionally, the electrical noise is less than 15mΩ, ensuring high-quality signal transmission. These slip rings support 12G-SDI (4K) video transmission and are backward compatible, equipped with an HDMI female elbow connector. The USB2.0 data transmission speed is 480Mbps, and the USB3.0 speed reaches up to 5Gbps, supporting simultaneous power and signal transmission, providing an all-in-one solution for users. These slip rings are widely used in high-speed data collection, photography equipment, test turntables, video surveillance, VR devices, and film production, driving digitalization and intelligent development across industries.

Notably, JINPAT’s VR high-definition video slip rings feature built-in interfaces, supporting quick plug-and-play for enhanced user convenience. They can transmit both power and signals simultaneously, with low packet loss, low crosstalk, low return loss, and low insertion loss, effectively solving signal transmission issues that arise during equipment rotation and winding, ensuring smooth data flow. JINPAT has specifically developed integrated slip rings supporting up to eight channels of USB2.0 and three channels of USB3.0 signals. The higher number of USB2.0 channels is due to the fewer twisted-pair combinations required, making impedance matching relatively simple. USB3.0 requires more twisted pairs, thus placing higher demands on impedance matching, slip ring diameter, and control over the cable length at both ends.

Among the various signal types in conductive slip rings, Ethernet signals are widely used. For example, the LPT000-1002-U2-E3-HF02 is a high-precision slip ring that integrates power and high-frequency signals. It uses a special structure and manufacturing process that allows the integrated power and high-frequency signals to work independently without interference, ensuring stable signal transmission. It can simultaneously transmit power, standard signals, industrial Ethernet signals, USB2.0 signals, and HD video signals. Its key feature is the use of connectors or terminals for easy and quick connection, ensuring stable and reliable performance with no interference or packet loss. The product is lightweight, compact, and reduces the overall weight of the customer's equipment, making installation easier.

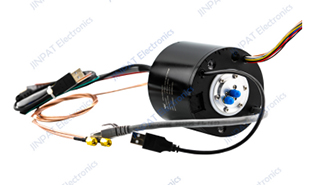

USB signals slip rings are also common in slip rings. JINPAT’s signal slip rings are specifically designed for 360-degree rotational data transmission, supporting USB1.0, USB2.0, and USB3.0 signals, while integrating HDMI, USB, DC power, and signal amplification functions to provide a comprehensive data transmission solution. Their high-definition video transmission capability reaches up to 2160x1080P@90Hz, ensuring no interference between HD and USB signals and guaranteeing lossless signal transmission.

As a leading manufacturer of conductive slip rings in the industry, JINPAT has accumulated extensive experience in slip ring technology. The company supports the customization of over 30 types of electrical signals, allowing them to meet various customer requirements and provide high-performance solutions. Clients in need are welcome to consult JINPAT at any time.
